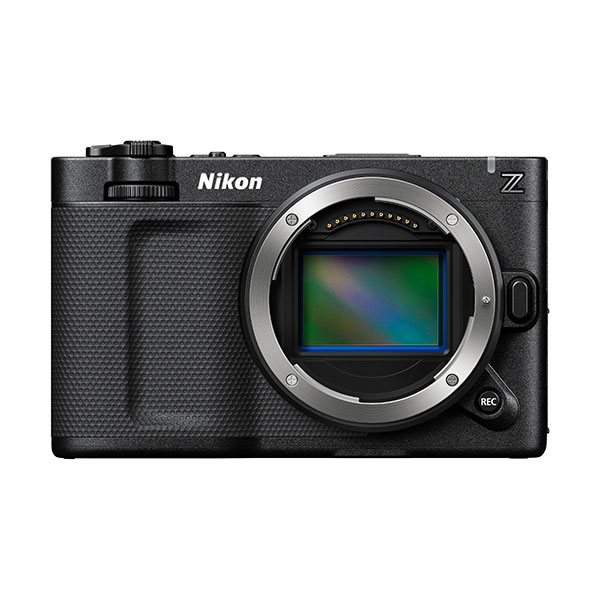

This is the first camera under the new Z Cinema umbrella which Nikon are also classing the Z mount RED cameras under as well. The ZR is based around the Z6 III but of course has a few refinements to make it more focused for motion acquisition and some new features that RED have had a hand in, and thats why its got both of their branding on the camera.
Imagine being able to capture professional footage anywhere, without the need for a large crew. Discover the ZR—insane full-frame image quality, class-leading built-in audio and unbeatable versatility. A ground breaking compact 6K cinema camera for filmmakers at all levels.
Redcode Raw (R3D NE)Renowned RED colour science, built-in. Full control over ISO, exposure and colour in post.
32-bit Float Audio
Wide dynamic range audio recording in-camera.
Built-in Stabilization
Powerful built-in stabilization with any lens—up to 7.5 stops.
High-quality Monitor
Built-in 4 inch Vari-angle DCI-P3 display with touch control.
Versatile Z Mount
Widest, shallowest full-frame mirrorless lens mount supports a vast selection of lenses.
Advanced Nikon Autofocus
9-subject detection autofocus, with automatic tracking of people, animals and vehicles—powered by deep learning.
| Photographic Tech Specs | |
| Camera Type | Digital camera with support for interchangeable lenses |
| Sensor Type | 24.5 MP Full-Frame CMOS |
| Sensor Size | 35.9mm x 23.9mm |
| Dynamic Range | 15+ Stops |
| Mount Type | Z Mount |
| Lens Compatibility | Accepts FTZII Mount Adapter with F-mount lenses. Capable of supporting third-party lenses, however when using non-Nikon adapters with third-party lenses, some functions may not be supported. |
| Battery Type | EN-EL15c, Compatible with external V Mount batteries via USB-C |
| Weight | 1.19 lbs (Without battery and cards) |
| Dimensions (LxWxD) | 133mm × 80.5mm × 48.7mm |
| Max Recording Time | 125 minutes |
| Media Primary | CFexpress Type-B |
| Media Secondary | Micro SD (UHS-I) |
| Monitor Size | 4 |
| Monitor Colour | DCI-P3 |
| Monitor Type | Vari-angle LCD |
| Monitor Brightness | 1000 cd/m^2 |
| I/O Power Data | Type-C USB (USB 3.2) |
| I/O External Monitoring | Type-D HDMI |
| I/O Audio Capture | Line Input / Digital Hot Shoe |
| I/O Audio Monitoring | 3.5mm Headphone Jack |
| I/O Digital Accessory Shoe | hot-shoe with sync and data contacts |
| I/O Tripod Socket | 1/4 inch |
| Codecs | REDCODE RAW (R3D NE) / 12-bit NIKON N-RAW / 12-bit PRORES RAW HQ PRORESS 422 HQ H.265 / 10-bit / 8-bit H.264 / 8-bit |
| Audio Recording | 32-bit float 24-bit 5 Audio Pickup Patterns via Nokia OZO Audio, (Available in H.265, H.264) |
| Log Profiles | RED Log3G10 (R3D NE) Nikon N-Log (N-RAW, PRORES RAW, PRORES 422, H.265) |
| ISO Sensitivity | Dual Base ISO – RED Log3G10: 800 / 6400 (Dual Native ISO) Dual Base ISO – Nikon N-Log: 800 / 6400 (Dual Native ISO) |
| Colour Management | Load up to 10 LUTs. Supports 17-point, 33-point, 65-point LUTs. Compatible with 24, 25, 30, 60p Frame Rates. |
| Picture Controls | Cloud Picture Controls by RED: CineBias, CineBias-T Cool Atmosphere, CineBias-C Crisp Teal Contrast, CineBias-CC Noir Vibes, CineBias-WC Grit & Glow, CineBias-TC Green Edge Experimental, CineBiasOffset, CineBias Achromic, CineBias BleachBypass. |
| Autofocus | 9 Autofocus Subject Detection Modes (People (eyes, face, head, upper body), Birds, Dogs, Cats, Cars, Motorcycles, Bicycles, Trains and Airplanes). Programable Autofocus Speed, Sensitivity and Position Recall |
| In-Body image stabilization | Nikon Vibration Reduction with 7.5 Stops |
| Features | Time-lapse video recording, electronic Vibration Reduction, time codes, REC lamp, N-Log and HDR (HLG) video, waveform display, red REC frame indicator, video recording display zoom (50%, 100%, 200%, and 400%), extended shutter speeds (modes S and M), and dual-format (proxy video) recording for RAW video; option to view video recording info available via i menu; breathing compensation, Hi-Res Zoom |
| Camera To Cloud | Compatible with Adobe Frame.io via Nikon NX MobileAir app. |
| Photographic Tech Specs | |
| Megapixels | 24.5 |
| Exposure Modes | Auto Programmed auto with flexible program (P) Shutter-priority auto (S) Aperture-priority auto (A) Manual (M) |
| User Modes | U1, U2, U3, and U4 (user setting mode) |
| File Formats | NEF (RAW): JPEG: HEIF: Supports RAW + Secondary Format Capture |
| Shutter Speed Range | Electronic shutter range: 1/16000 sec to 900 sec |
| Release Mode | Single frame, continuous low-speed, continuous highspeed, continuous high-speed (extended), high-speed frame capture + with Pre-Release Capture, self-timer |
| Approximate Frame Advance Rate* | Continuous low-speed: Approx. 1 – 7 fps Continuous high-speed: Approx. 16 fps Continuous high-speed (extended): Approx. 20 fps High-speed frame capture + (C15): Approx. 15 fps High-speed frame capture + (C30): Approx. 30 fps High-speed frame capture + (C60): Approx. 60 fps High-speed frame capture + (C120): Approx. 120 fps * Maximum frame advance rate as measured by inhouse tests. |
| ISO Range | ISO 100 to 64000 |
| White Balance | Auto (3 types), natural light auto, direct sunlight, cloudy, shade, incandescent, fluorescent (3 types), flash, choose colour temperature (2500–10,000 K), preset manual (up to 6 values can be stored), all with fine-tuning |
| Picture Controls | Flexible Picture Control, Rich Tone Portrait, Deep Tone Monchrome, Flat Monochrome, Storage for custom Picture Controls, Selected Picture Control can be modified, Vivid, Standard, Portrait, Neutral, Monochrome, Landscape, Flat, Creative Picture Controls (Dream, Morning, Pop, Sunday, Somber, Dramatic, Silence, Bleached, Melancholic, Pure, Denim, Toy, Sepia, Blue, Red, Pink, Charcoal, Graphite, Binary, Carbon), Auto, Storage for Cloud Picture Controls. |
| Timelapse Mode | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Connectivity | Nikon SnapBridge App. |
| Camera to Cloud | Nikon Imaging Cloud |
