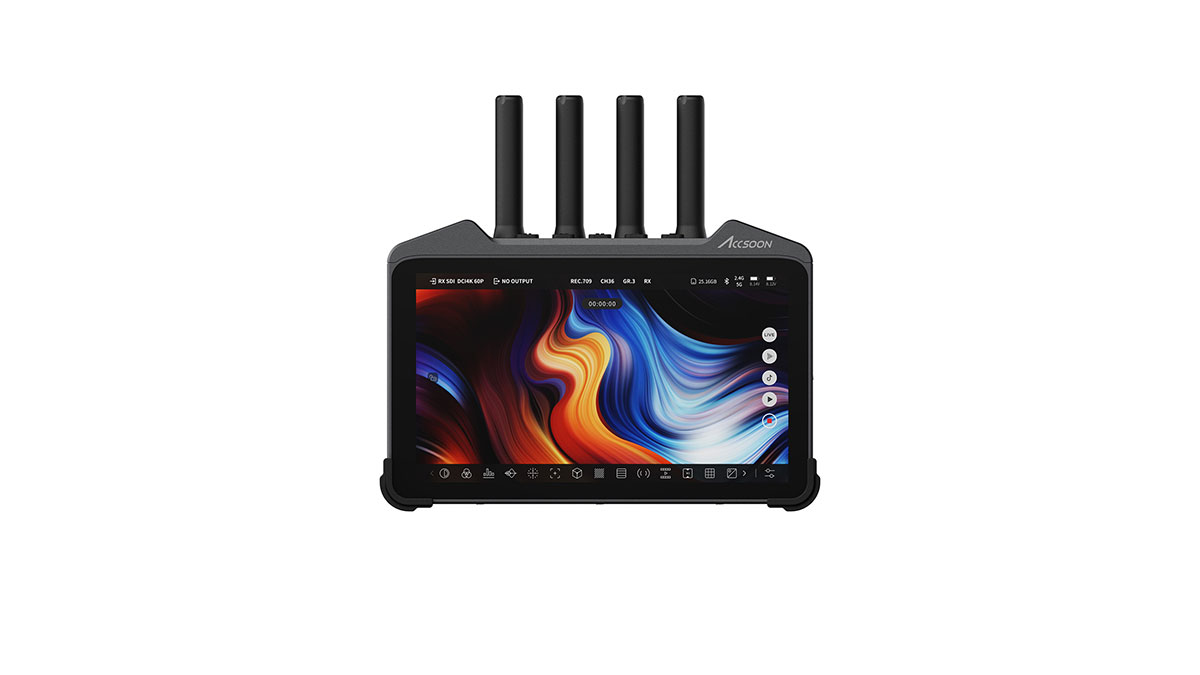

CineView M7 Pro
All-In-One Wireless Smart Monitoring Ecosystem
Master Colour Accuracy True To Source Precision
7” OLED Cinema grade display equipped with full-touch interface. Precision colour details crafted for professional creators.
Cinema Grade Colour Accuracy
Precisely calibrated to meet professional filmmaking standards with cinematic depth and colour accuracy.
Support Custom Screen Calibration
1D/3D LUTs Calibration: Compatible with Calman®/ColourSpace®/Calibrite®
Adjustable Gamma (2.0-2.6)
Traditional RGB Gain Control
Precision Colour Mapping Workflow
Rec.709 D65 Gamut Mapping Engine
Edge-Lit Backlight System, Precision Light & Shadow Control
Achieving high brightness is easy, but maintaining accurate colours is challenging. CineView M7 Pro features a 1000:1 ultra-high contrast ratio combined with a fully laminated high-transmittance display, effortlessly handling both dark and bright scenes. Build with Edge-Lit backlight system with intelligent brightness control enables pixel-level precision, delivering true-to-life colour reproduction without distortion.
High Bright Fully Laminated Display – True Colours Under Direct Sunlight
CineView M7 Pro is equipped with high transparency screen, enhanced by exclusive DXC coating, increasing light transmittance to 99% while significantly reducing reflectivity. Even in bright outdoor environments, the screen maintains exceptional clarity and colour accuracy.
All in One Wireless Workstation
CineView M7 Pro features integrated long-range wireless video transmitter and receiver capabilities, seamlessly connecting to any Accsoon CineView transmitter. It leverages Accsoon’s patented Dual-Band transmission technology for ultra-low latency wireless monitoring. Nail every shot with cinematic grade tools like LUT box, false colour and waveforms-all controlled through customizable buttons.
Compatibility with CineView TX/RX system* up to DCI 4K60 wireless monitoring
* CineView Master 4K, CineView 2 SDI, CineView SE/HE/Quad
One Step Ahead Redefining Smart Monitoring
CineView M7 Pro powered by 8K high-performance processors and a smart operating system, is designed to adapt to the evolving needs of modern production.
Smart Evolution: Your Portable Production Workstation
Network connectivity, intuitive interaction, and file management with efficiency
GPU+NPU based computing system designed for higher image process capabilities
500% Smoother UI responsiveness
200% Faster image processing
Seamless Interaction, everything under your control
Intuitive Interface responsive, smartphone-like menus
In-Cell Touch Display thinner, lighter with faster touch response times
Single/Multi-Touch Support
Smart File Management transfer, organize, and process files seamlessly
Instant File Transfer & Share
Built-in Wi-Fi enables camera-to-cloud uploads, direct file sharing
Pro-Grade Live Streaming
RTMP/SRT Live Streaming with LUT burnt-in Live streaming made easy without capture card or PC
Smart and Future-Proof
Built on future-proof operating systems designed to adapt to the evolving needs of modern production
On Set Monitoring, Reimagined
CineView M7 Pro delivers cinematic standard calibrated colour with 127-point 3D LUT precision.
Its LUT Box function enables multi-screen colour consistency via SDI/HDMI outputs, revolutionizing on-set colour workflow.
Unrivalled Display Colour Precision
.cdl file support
Effortlessly import and apply 3D LUTs up to 127 points
Higher accuracy with 3D LUTs tetrahedral interpolation
LUT burnt-in monitoring, recording, streaming, and cloud sharing
LUT BOX
Real-time LUT box, applying transforms to HDMI, SDI, or WiFi outputs, or burning LUTs directly into recorded footage
Format Conversion Flexibility
Engineered with groundbreaking architecture, CineView M7 Pro delivers high processing ability to handle 961+ video format combinations effortlessly – from 4K60 to 1080P, SDI & HDMI cross-conversion, even different frame rate outputs.
Aerospace-Grade Aluminium Body
A premium grade solid design for additional protection
Quad-Antenna Dual-Band Architecture
Accsoon’s patented transmission technology ensures rock-solid wireless reliability
Smart Cooling with Speed Control
Specifications
| DISPLAY | |
| Display Screen | 7″ TrueVision Backlight LCD |
| Touchscreen | Ultra high resolution capacitive touchscreen |
| Resolution | 1920 × 1080 pixels |
| Length-Width Ratio | 16:9 |
| Brightness | 1000 nits |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 176°/176° |
| Backlight Type | LED |
| Screen Colour Calibration | Supported |
| LUT SUPPORT | |
| LUT | 1D and 3D LUTs supported 1D: up to 1024 points 3D: up to 127 points |
| INPUTS & OUTPUTS | |
| Video Input Port | HDMI 2.0 3G-SDI |
| Video Output Port | HDMI 2.0 3G-SDI |
| HDMI VIDEO FORMATS | |
| HDMI Video Input Format | 4K DCI (4096×2160): 23.98/24/25/29.97/30/50/59.94/60 4K UHD (3840×2160): 23.98/24/25/29.97/30/50/59.94/60 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080i: 50/59.94/60 720p: 50/59.94/60 |
| HDMI Video Output Format | 4K DCI (4096×2160): 23.98/24/25/29.97/30/50/59.94/60 4K UHD (3840×2160): 23.98/24/25/29.97/30/50/59.94/60 1080p: 23.98/24/25/29.97/30/50/59.94/60/100/120 1080i: 50/59.94/60 720p: 50/59.94/60 |
| SDI VIDEO FORMATS | |
| SDI Video Input Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60 Level A/B 1080i: 50/59.94/60 |
| SDI Video Output Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60 Level A 1080i: 50/59.94/60 |
| POWER | |
| DC Port | 6.0~16.8V 5.5mm x 2.1mm Centre positive |
| Compatible Battery | Compatible with NP-F550, NP-F750, NP-F970 type batteries |
| USB-C Power Input Port | PD 9V/3A, 12V/3A, 15V/3A |
| USB-C Power Output Port | Maximum: 5V/2A |
| AUDIO | |
| Microphone/Headphone Jack | 3.5mm |
| Microphone Input Audio Sampling | 16bit, 48KHz |
| POWER CONSUMPTION | |
| Power Consumption | 12W~28W (varies according to actual applications) |
| BUILD | |
| Housing | Aluminium alloy |
| Heat Dissipation | Active + Passive Cooling |
| WIRELESS | |
| Transmission Frequency | Dual-Band 2.4GHz + 5GHz |
| Wireless Transmission Latency | 60ms |
| Wireless Transmission Distance | Dual-Band connection: 350 metres App connection: 100 metres |
| ENVIRONMENT & DIMENSIONS | |
| Work Environment Temperature | -10°C – 40°C |
| Weight (Antennas Excluded) | 494g |
| Dimensions (Antennas Excluded) | 182.2 × 120.7 × 31.5mm |
